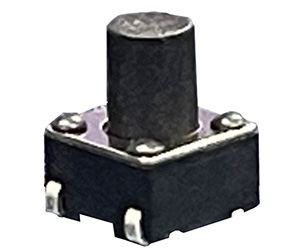

IT-1102J Series SMT Type Tact Switch 系列表面黏著輕觸開關

Specification:

產品規格:

• Rating額定電流: 50mA 12V DC.
• Function功能: OFF-(ON).
• Total travel總行程: 0.25±0.1mm.
• Contact resistance接觸電阻: 100mΩ Max.(inital value)
• Insulation resistance絕緣電阻: 100MΩ Min. at 100V DC.
• Withstand voltage耐電壓: 100V AC for 1 minute.
• Operating force操作力: 160±50g  & 250±50g.
• Operating life壽命次數: 100,000 Cycles.
