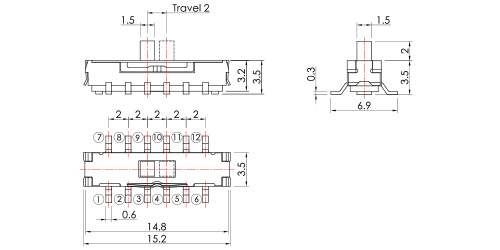

IS-4200 Series SMD Type Tiny Slide Switch 系列焊接式微小的滑動開關

Specification:
產品規格:

• Rating額定電流: 0.1A 12V DC.
• Circuit迴路: 4PDT.
• Function功能: ON-ON.
• Contact resistance接觸電阻: 100mΩ Max.
• Insulation resistance絕緣電阻: 100MΩ Min. at 100V DC.
• Withstand voltage耐電壓: 250V AC for 1 minute.
• Operating force操作力: 250±100g .
• Operating life壽命次數: 10,000 Cycles.
