2022 New Products

2022.04.08 2022 New Products 瀏覽人數:256

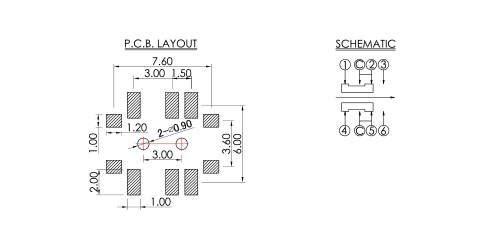

IS-SS07 Series SMT Type Slide Switch 列SMT滑動開關





Specification:

產品規格:

  • Rating額定電流: 0.3A 4V DC.
  • Function功能: ON-ON.
  • Travel行程: 1.5±0.3mm.
  • Contact resistance接觸電阻: 70mΩ Max.
  • Insulation resistance絕緣電阻: 100MΩ Min. at 100V DC.
  • Withstand voltage耐電壓: 500V AC for 1 minute.
  • Operating force操作力: 200±100g.
  • Operating life壽命次數: 10,000 Cycles.
