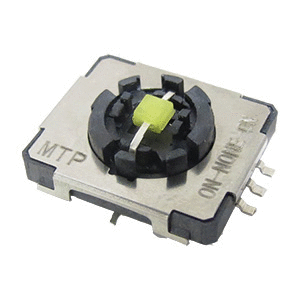

New Product MTP Series 2-in-1 (W/LED) Rotary & Push Switch
新產品 MTP系列2合1(帶燈)旋轉按鈕開關

Rotary SwitchPush Switch

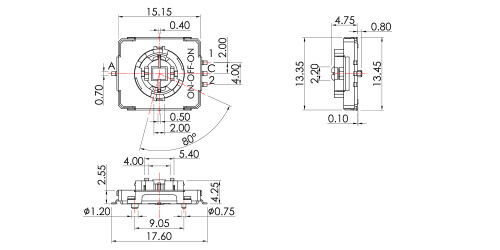

Specification:
產品規格:

  • Rating 額定電流: 50mA 12V DC Max.(Resistive load)
  • Function 功能: ON-ON, ON-OFF-ON
  • Travel 行程: ABOUT 0.55mm.(Push)
  • Contact resistance 接觸電阻: 200mΩ Max.
  • Insulation resistance 絕緣電阻: 100MΩ
  • Withstand voltage 耐電壓: 100V AC for 1 minute
  • Operating temperature 操作溫度: -20℃ ~ 70℃
  • Operating force 操作力: Push:  3N+/-1N ,Rotary: 3N+/-1.5N
  • Operating life 壽命次數: Push: 30,000 Cycles ,Rotary: 10,000 Cycles
