2017 New Products

2017.11.29 2017 New Products 瀏覽人數:1700

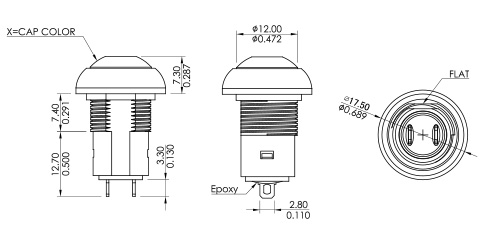

PAL6 Series Sub-Miniature (W/LED) Pushbutton Switch  系列 超小型(帶燈)按鈕開關




Specification:
產品規格:

  • Rating額定電流: 100mA 24V DC / 2A 125V AC
  • Function功能: OFF - ON
  • Travel行程: 2.5mm
  • Contact resistance接觸電阻: 50mΩ Max.
  • Insulation resistance絕緣電阻: 1GΩ Min. at 500V DC
  • Operating force操作力: 2N ~ 5N
  • Electrical life電氣壽命次數100mA 24V DC : 200,000 Cycles

                      2A 125V AC  : 10,000 Cycles

  • Waterproof level防水等級: IP67
  • Panel thickness面板厚度: 1.5mm ~ 4mm
