News
2017.11.09
2017 New Products
瀏覽人數:1539

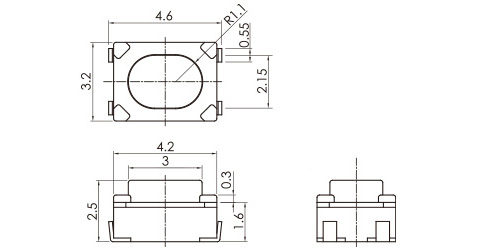

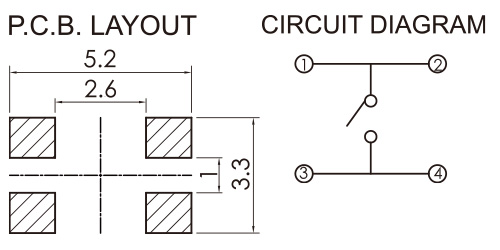

IT-1145 Series SMT Type Tact Switch 系列焊接式輕觸開關
![](/uploads/images/News_20171109_2_1.jpg)
![](/uploads/images/News_20171109_2_2.jpg)
![](/uploads/images/News_20171109_2_3.jpg)
Specification:
產品規格:
- Rating額定電流: 50mA 12V DC
- Travel行程: 0.2+/-0.1mm
- Contact resistance接觸電阻: 500mΩ Max.
- Operating force操作力: 100,160,250+/-50g , 400+/-70g
- Life壽命次數: 100,160,250g : 100,000 Cycles Min.
400g: 50,000 Cycles Min.
