一綺電子企業股份有限公司

Please contact us if you need the latest specification and dimension in details, we will provide you immediately.

如需最新更詳盡的規格尺寸，請與我司聯絡將立即提供

HAT407 SERIES

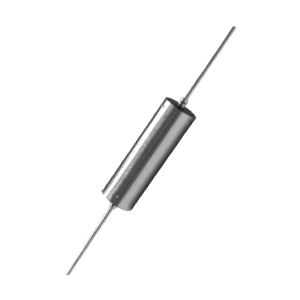

Tilt Rolling Ball Switch, 傾斜滾珠開關
Shock induction Rolling Ball Switch, 震動感應滾珠開關
Rating : 6mA 24V DC
Contact resistance: 0.5Ω Max.(measured at 45∘tilt)
Differential angle: 10度 Max.
Operating temperature: -25度C~ +85度C
Electrical life: 100,000 Min.
用途: 保全、防盜系統、省電系統等

SBT411 SERIES
Tilt Rolling Ball Switch, 傾斜滾珠開關
Shock induction Rolling Ball Switch, 震動感應滾珠開關
Rating : 10mA 24V DC
Contact resistance: 0.5Ω Max.(measured at 45∘tilt)
Differential angle: 30度 Max.
Operating temperature: -25度C~ +85度C
Electrical life: 100,000 Min.
用途: 保全、防盜系統、省電系統等

SBT411-2 SERIES
Tilt Rolling Ball Switch, 傾斜滾珠開關
Shock induction Rolling Ball Switch, 震動感應滾珠開關
Rating : 10mA 24V DC
Contact resistance: 0.5Ω Max.(measured at 45∘tilt)
Differential angle: 30度 Max.
Operating temperature: -25度C~ +85度C
Electrical life: 100,000 Min.
用途: 保全、防盜系統、省電系統等

SBT411-3 SERIES
Tilt Rolling Ball Switch, 傾斜滾珠開關
Shock induction Rolling Ball Switch, 震動感應滾珠開關
Rating : 10mA 24V DC
Contact resistance: 0.5Ω Max.(measured at 45∘tilt)
Differential angle: 30度 Max.
Operating temperature: -25度C~ +85度C
Electrical life: 100,000 Min.
用途: 保全、防盜系統、省電系統等

HAT329 SERIES
Tilt Rolling Ball Switch, 傾斜滾珠開關
Shock induction Rolling Ball Switch, 震動感應滾珠開關
Rating : 10mA 24V DC
Contact resistance: 0.5Ω Max.(measured at 45∘tilt)
Differential angle: 30度 Max.
Operating temperature: -25度C~ +85度C
Electrical life: 100,000 Min.
用途: 保全、防盜系統、省電系統等

SBT413-R2 SERIES
Tilt Rolling Ball Switch, 傾斜滾珠開關
Shock induction Rolling Ball Switch, 震動感應滾珠開關
Rating : 10mA 24V DC
Contact resistance: 0.5Ω Max.(measured at 45∘tilt)
Differential angle: 30度 Max.
Operating temperature: -25度C~ +85度C
Electrical life: 100,000 Min.
用途: 保全、防盜系統、省電系統等

SBT512-3 SERIES
Tilt Rolling Ball Switch, 傾斜滾珠開關
Shock induction Rolling Ball Switch, 震動感應滾珠開關
Rating : 10mA 24V DC
Contact resistance: 0.5Ω Max.(measured at 45∘tilt)
Differential angle: 30度 Max.
Operating temperature: -25度C~ +85度C
Electrical life: 100,000 Min.
用途: 保全、防盜系統、省電系統等

SBT514 SERIES
Tilt Rolling Ball Switch, 傾斜滾珠開關
Shock induction Rolling Ball Switch, 震動感應滾珠開關
Rating : 10mA 24V DC
Contact resistance: 0.5Ω Max.(measured at 45∘tilt)
Differential angle: 30度 Max.
Operating temperature: -25度C~ +85度C
Electrical life: 100,000 Min.
用途: 保全、防盜系統、省電系統等

BT514-2 SERIES
Tilt Rolling Ball Switch, 傾斜滾珠開關
Shock induction Rolling Ball Switch, 震動感應滾珠開關
Rating : 10mA 24V DC
Contact resistance: 0.5Ω Max.(measured at 45∘tilt)
Differential angle: 30度 Max.
Operating temperature: -25度C~ +85度C
Electrical life: 100,000 Min.
用途: 保全、防盜系統、省電系統等

BT514-3 SERIES
Tilt Rolling Ball Switch, 傾斜滾珠開關
Shock induction Rolling Ball Switch, 震動感應滾珠開關
Rating : 10mA 24V DC
Contact resistance: 0.5Ω Max.(measured at 45∘tilt)
Differential angle: 30度 Max.
Operating temperature: -25度C~ +85度C
Electrical life: 100,000 Min.
用途: 保全、防盜系統、省電系統等
